04Projects
Photographed case studies of our own projects will be added here. Until then, these illustrative examples show how each type of system is typically installed.
01Example HVAC Applications
Six common applications, visualised so you can see where the equipment goes and how the air moves.
Illustrative examples, not completed projects. These 3D visualisations show how each type of system is typically installed. They do not show AI AIR SOLUTIONS projects, client sites or any specific building.

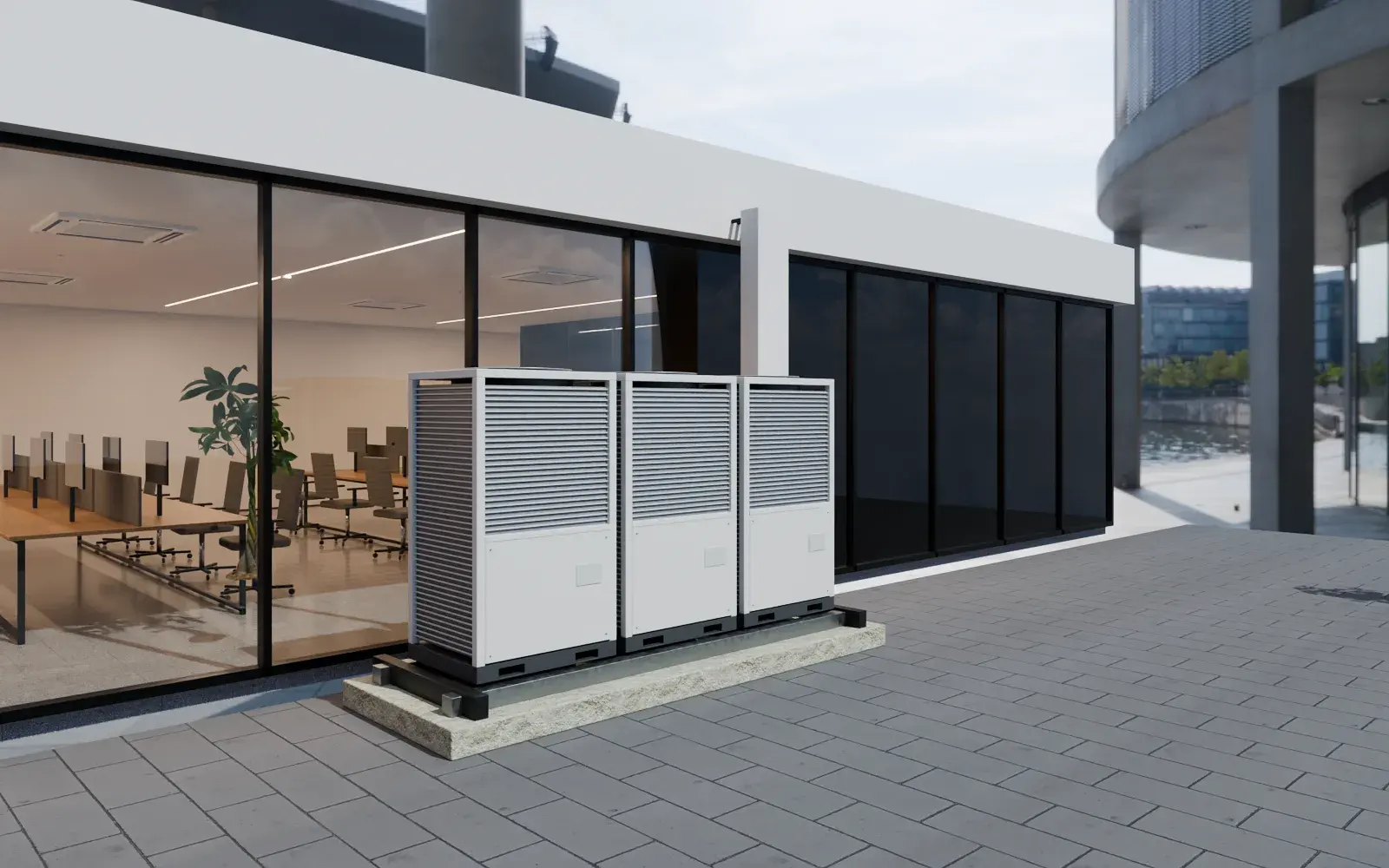

VRV / VRF · Example application
One bank of outdoor units on the terrace serves indoor units across the floor, so the open office and the meeting room can each run at their own setting.

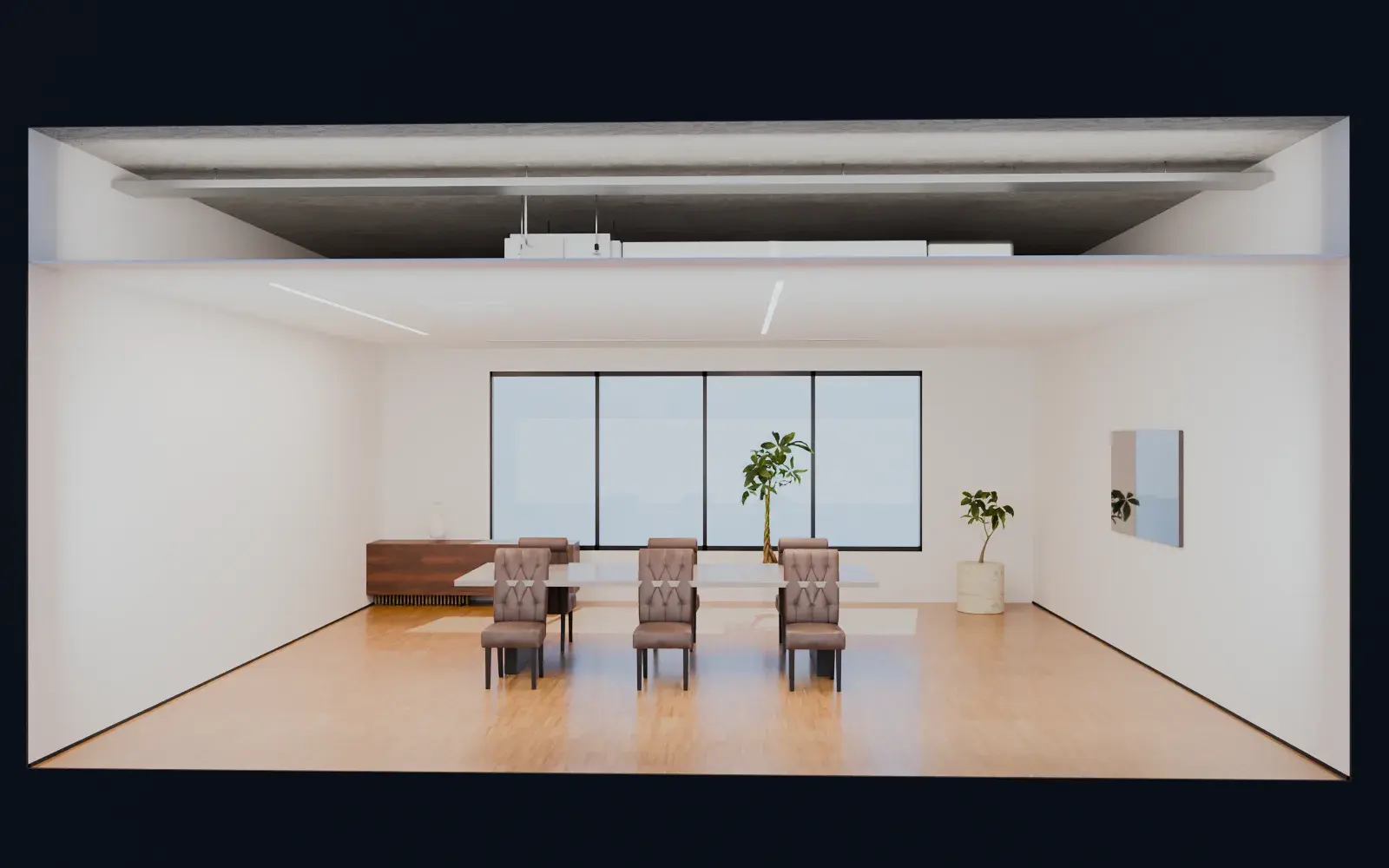

Ducted · Example application
The indoor unit hangs out of sight in the ceiling void. Insulated ductwork feeds linear slot diffusers, and air returns through a ceiling grille.

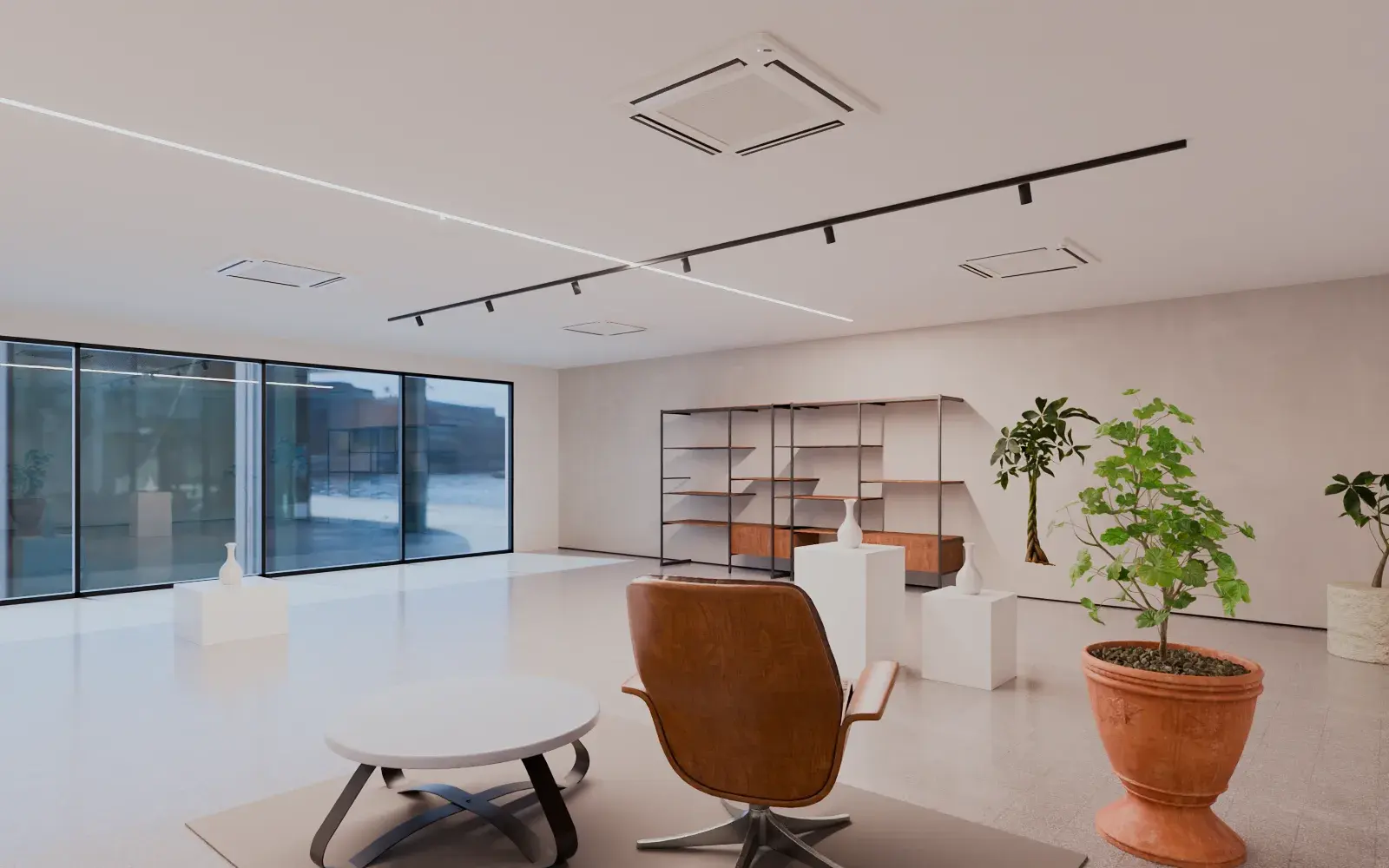

Cassette · Example application
Four-way cassettes sit flush in the ceiling and spread air in four directions across an open retail floor, alongside the lighting.

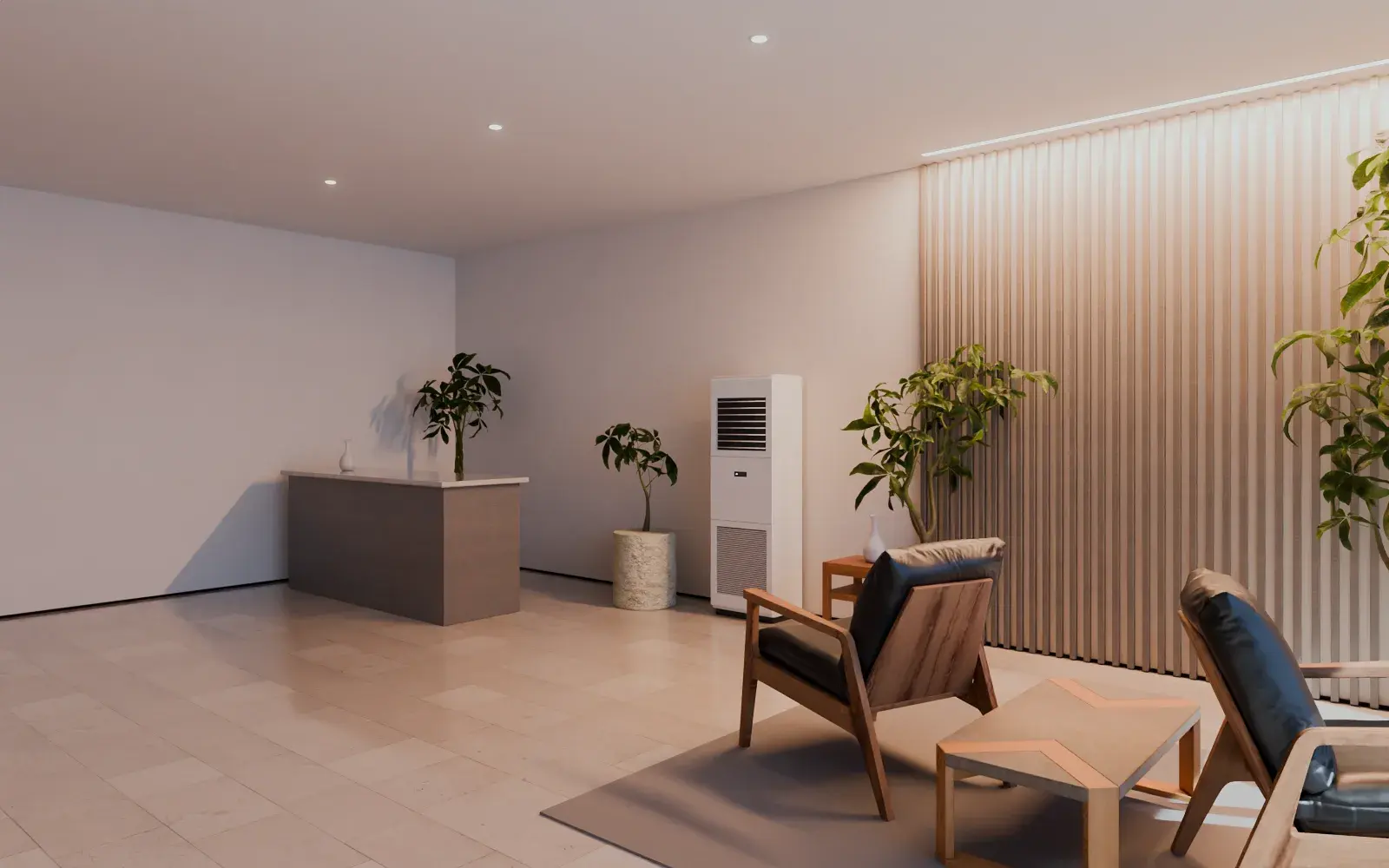

Floor Standing · Example application
A floor-standing unit serves a tall lobby without any ceiling work. Air leaves high on the unit and spreads across the space.

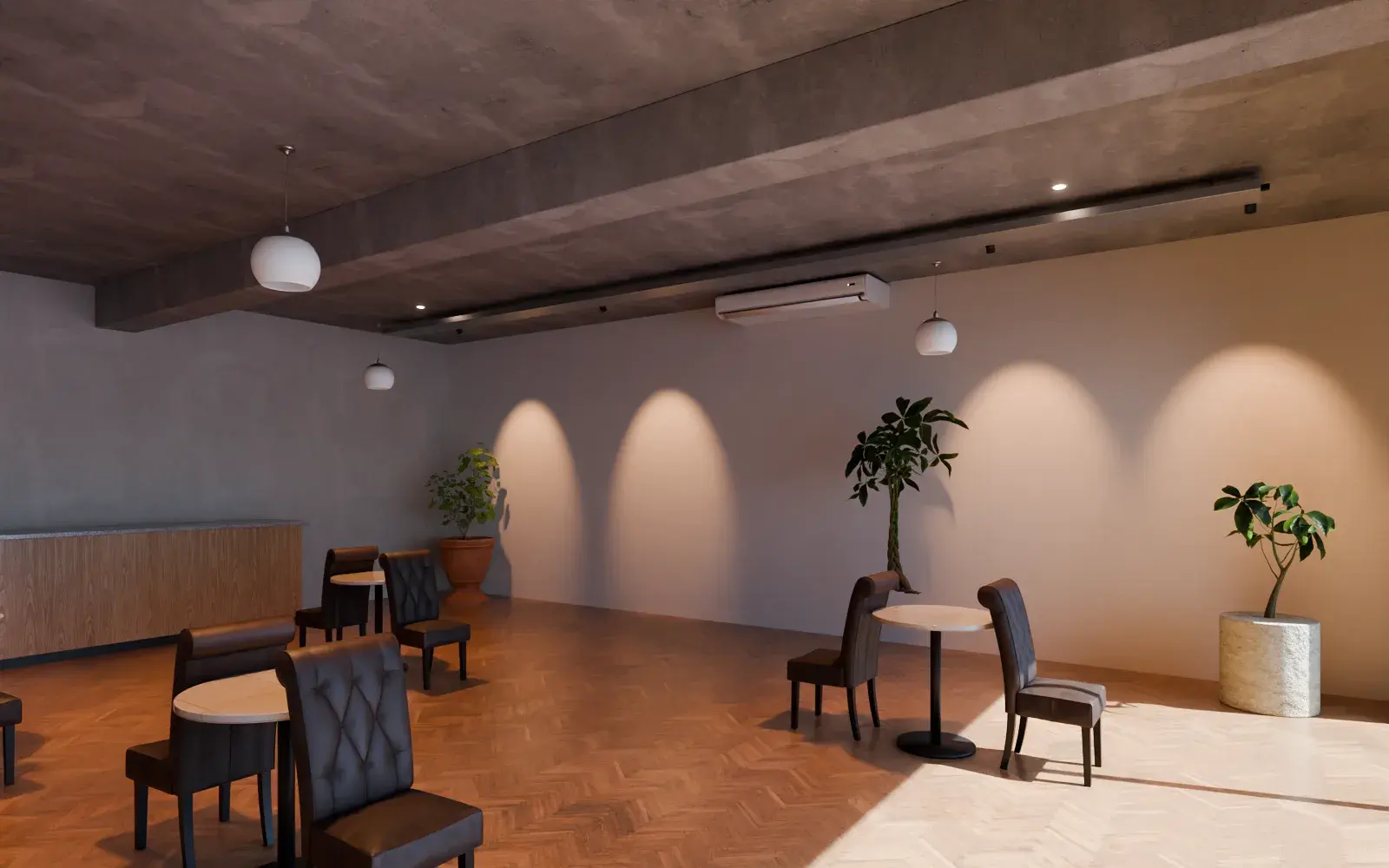

Ceiling Suspended · Example application
Where there is no false ceiling, a ceiling-suspended unit mounts directly under the slab and sends air out along the room.

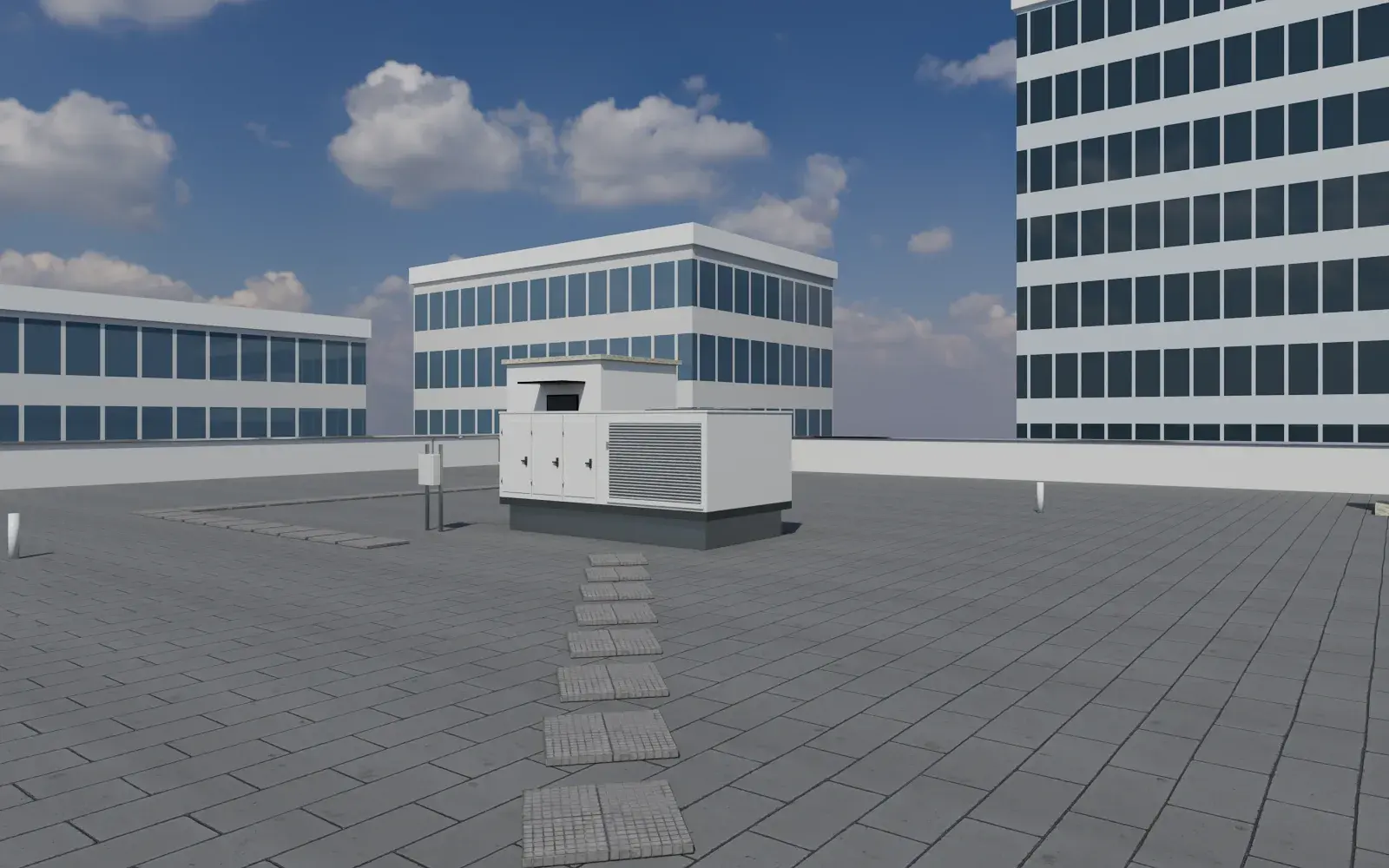

Packaged Roof Top · Example application
A packaged unit sits on a roof curb with its ducts dropping into the building below, leaving the floors free of equipment.
02AI AIR SOLUTIONS Projects
For hospitals, showrooms, cafés, offices and homes across Chhattisgarh, Maharashtra and Odisha.
In preparation
We only publish projects with real photographs and the client's permission. Until then, read what our clients say or ask us about work similar to yours.
